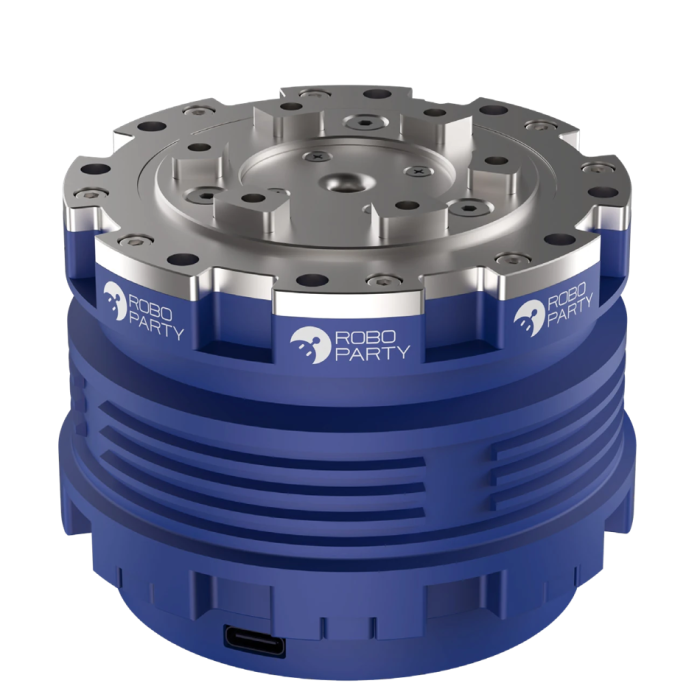

RoboParty ROMOMO 8462

RoboParty ROMOMO 8462 is a robot joint module in the ROMOMO actuator family. Its own column in the manufacturer’s comparison table specifies 14 N·m rated torque, 42 N·m peak torque and a rated speed of 60 rpm. These model-specific values are important because the family includes several different torque, speed and mass combinations; specifications from another ROMOMO size should not be substituted.

Torque, Speed and Reduction

The ROMOMO 8462 reduction ratio is 20:1. The table distinguishes its rated speed of 60 rpm from a peak speed of 155 rpm. It also separates rated torque from peak torque. RoboParty explicitly states that peak parameters describe short-duration conditions rather than continuous output capability. A design requiring sustained torque must therefore be evaluated using the rated information and the relevant operating conditions, not the headline peak value.

The source lists a measured prototype mass of 779.4 g. This is described as an actual measurement from laboratory test reporting, not as shipping weight or a published production-mass tolerance. The value is useful for an initial actuator mass budget, but a quotation or current drawing should establish what is included in the delivered assembly.

Electrical Supply

The rated supply voltage is 48 V. This is a module specification rather than a complete robot power-system design. Selection of a power supply, protective devices and wiring requires the applicable module documentation and a defined duty cycle. The product page does not provide a complete thermal envelope or a guaranteed continuous operating condition for every installation.

What the Published Table Does Not Establish

The ROMOMO 8462 column leaves many fields unmarked. It does not publish rated power, no-load speed, backlash, rated or peak current, communication protocol, encoder type or resolution. It also leaves outer diameter, axial dimensions, hollow diameter and motor inertia unspecified. Those omissions remain omissions in this draft, even though neighbouring ROMOMO models have values in the same rows.

The model number must not be used to infer an 84 mm outer diameter or another mechanical size. Likewise, CAN FD, EtherCAT and dual encoders listed for other models cannot be assigned to the 8462 without confirmation. A shared family page is not sufficient evidence that every electrical or mechanical feature is identical.

Selection and Documentation

The family page introduces clamp fixation, hollow cable routing and hardware drawings with driver source code. Because the 8462 model table is incomplete, exact mounting, routing and development-interface details require confirmation for this particular module. The safest starting point is its seven published specification values, followed by a request for the current model-specific drawing and electrical documentation.

This module can be considered in robot-actuator selection where its published torque, speed and mass are relevant. Suitability for an actual mechanism still depends on missing electrical, mechanical and thermal information. No operating-temperature range, ingress rating, certification, selling price, stock status or delivery date is asserted here.

Frequently Asked Questions

What is RoboParty ROMOMO 8462?

It is a ROMOMO robot joint module with a manufacturer-listed rated torque of 14 N·m and rated speed of 60 rpm. Sparse or missing entries should be checked against current model-specific documentation.

Can peak torque be used continuously?

No. The manufacturer identifies peak parameters as short-duration figures. The 42 N·m peak-torque entry must remain separate from the rated-torque specification.

What mass does the manufacturer publish?

The table lists 779.4 g as measured prototype mass. That value is not a shipping weight and does not establish a production tolerance.

What are the benefits of model-specific selection?

Using the correct torque, speed, reduction and mass entries avoids transferring stronger or more complete specifications from another family member. Missing fields should be confirmed rather than guessed.

Where can I buy ROMOMO 8462?

Use RoboParty’s ROMOMO product page to request a current quotation and the exact model documentation. Confirm supplied interfaces, mechanical details and operating conditions before ordering.

Summary

ROMOMO 8462 should be evaluated as a distinct actuator, using its own rated and peak figures and preserving the manufacturer’s qualifications. Its incomplete comparison-table column makes additional documentation essential before design commitment.
